Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.
T25-162-201
T25-162-207
T25-162-209

•   기본형 (The Convenient and Versatle)

  Cat. No	Model	Burette Drive	Package
  T25-162-201	T5 ET	Max. 2ea	w/ Manual Stand
  T25-162-203	T5 ETR		w/ Rondolino Stand

  • ● 분주를 위한 Burette Drive를 2개까지 확장 가능
    ● pH Board를 Conductivity Board로 쉽게 교체 가능
    ● USB, Ethernet, CAN-Bus인터페이스 제공
    ● T5 ET : T5 Main Unit, Terminal, 10 ml Burette, Compact Stirrer, Manual Titration Stand Kit
    ● T50A Terminal : T5 Main Unit, Terminal, 10 ml Burette, Compact Stirrer, Automated Titration Stand Rondolino

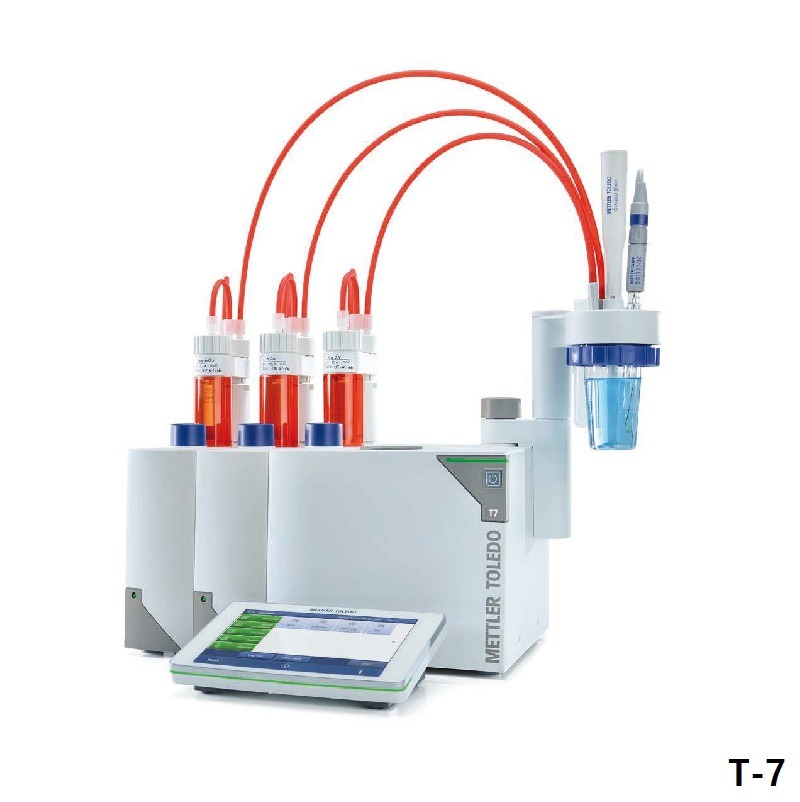

  다기능 적정기 (Flexible and Expandable)

  Cat. No	Model	Burette Drive
  T25-162-207	T7	Max. 4ea

  • ● 분주 및 적정용도의 Burette Drive를 4개까지 확장 가능
    ● Sensor Board 를 1개 더 확장 할 수 있어 pH와 전도도 측정을 동시에 할 수 있음
    ● T9 으로 업그레이드가 가능함
    ● 서로 다른 다양한 일들을 동시 진행 가능
    ● T7 : T7 Main Unit, Terminal, pH Board, 10ml Burette

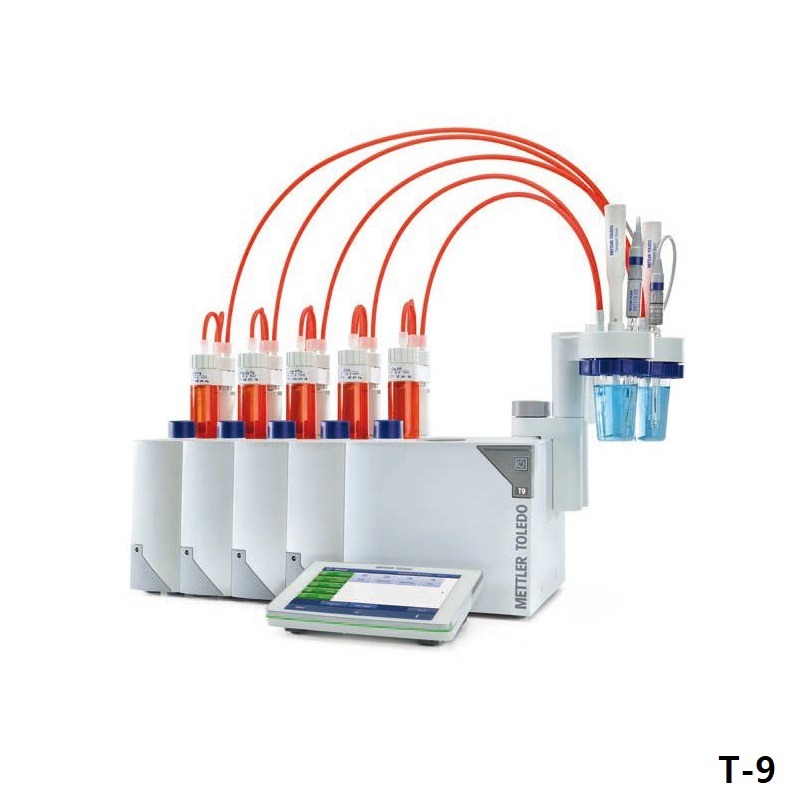

  다기능 적정기 (Intelligent and Powerful)

  Cat. No	Model	Burette Drive
  T25-162-209	T9	Max. 8ea

  • ● 분주 및 적정용도의 Burette Drive를 8개까지 확장 가능
    ● Sensor Board 를 2개 더 확장 할 수 있어 pH와 전도도 측정을 동시에 할 수 있음
    ● 두개의 스탠드 또는 두개의 Rondo 샘플러를 이용하여 실험법이 다른 두가지 시료군을 동시 적정 가능
    ●“If ~ Then”조건으로 분석법 편집 가능
    ● 각각 다른 분석법의 다른 종류의 시료 연속 분석 가능
    ● T9 : T9 Main Unit ,Terminal, pH Board, 10ml Burette
  Comparison Table Titration Excellence Line

  Cat. No		T25-162-201/ T25-162-203	T25-162-207	T25-162-209
  Model		T5	T7	T9
  One Click Titration	User Specific Homescreen with shortcuts	Yes
  	Shortcuts per user	24
  	KF Solvent Control	Yes
  Hot Plug and Play	Solvent Manager
  	USB Printer
  	USB Memory Stick
  	USB Barcode Reader
  Security	LevelSens
  	LosStraight Fingerprint Reader
  Automation	InMotion Autosamplers
  	Liquid Handler	-	1	2
  	Rondolino automated titration stand	Yes
  	InMotion KF Oven Autosamplers	-	Yes
  Burette Drives	Max. Number to dose and titrate	1 (Internal) + 1 (External)	1 (Internal) + 3 External	1 (Internal) + 7 External
  	Max. Number to dose Only	+ 2 External	-	-
  Mathod and Series	Max. Number of user methods	150
  	Learn Titration	Yes
  	Karl Fischer Methods Volumetric	V20S equivalent methods	Yes
  	Karl Fischer Methods Coulometric	C20S equivalent methods
  	Bromine Index Determination	Yes
  	Thermometric TAN
  	Accormpanying Stating	-		Yes
  	Ion Standard Addition	Yes
  	SmartChemical
  	SmartSample
  	Number of Method functions per method	15	60	150
  	Number of Loops per Method	1	3	6
  	Continuous Run	-		Yes
  	If....then conditions	-
  	Result Buffer	-
  	Series Sequences	-	10
  	Number of samples per series	303
  	Predefined METTLER TOLDE method	>60	>70 (Incl. KF Methods)
  Task List	Number of Tasks	10		30
  	Number of Tasks running in parallel	-	7	8
  Online Help	-	Yes
  Parallel Titration Including KF	-	-		Yes
  Expandable	-	-	To T9	-
  Status light and event sounds	-	Yes
  Data Export / Printing	RS232, USB, Ethernet, PDF

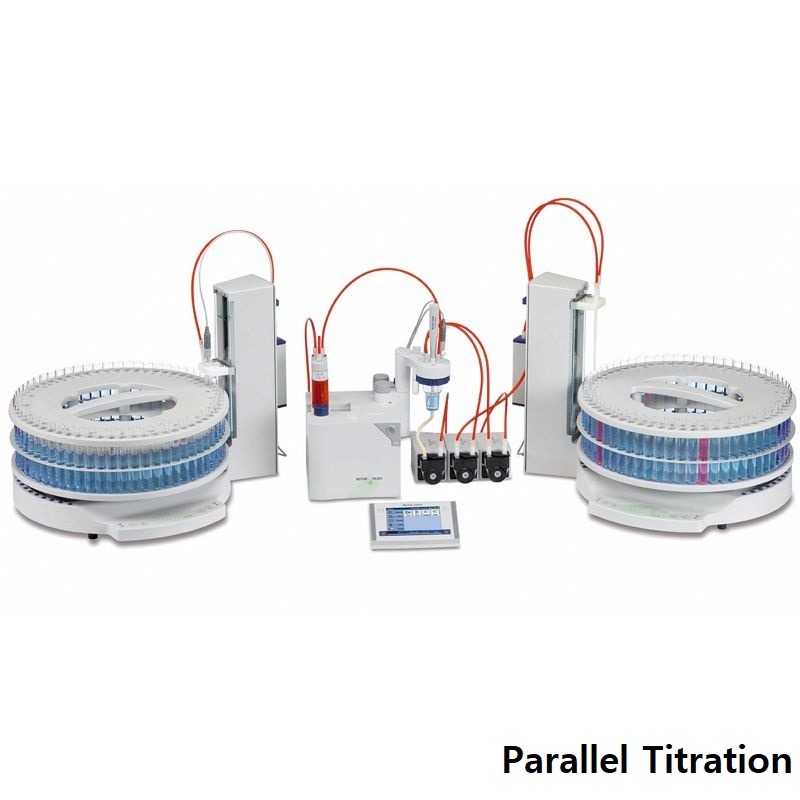

  Parallel Titraion	-	-	-	Yes
  Sensor Boards	pH / mV or Conductivity or Coulometry	1	2/1	3/1
  Sensor Inputs	Potentiometric	2	4/2	6/2
  	Polarized	1	2/1	3/1
  	Reference	1	2/1	3/1
  	PT1000	1	2/1	3/1
  	Conductivity	1/0	2/0	3/0
  PC Software	LabX Titration Connectivity : Express and Server	Yes
  Homogenizer	-	TTL	RS/TTL
  Languages	-	English / German / French / Spanish / Italian / Chinese / Russian / Polish / Korea / Portuguese


  Technical Specification

  Cat. No		T25-162-201/ T25-162-203	T25-162-207	T25-162-209
  Model		T5	T7	T9
  Potentiometric Sensor Inputs	Measurement Range	±2000mV
  	Resolution / Error Limit	0.1mV / 0.2mV
  Polarized Sensor Input	Measurement Range Ipol / Upol	0 ~ 2000mV / 0~200uA
  	Resolution Ipol / Upol	0.1mV / 0.1uA
  	Error Limit Ipol / Upol	2.0mV / 0.2uA
  	Current Source Range Ipol / Upol	0~24uA AC / 0~2000mV AC
  	Current Source Resolution Ipol / Upol	0.1uA / 0.1mV
  Temp. Sensor PT1000	Measuring Range	-20~130℃
  	Resolution / Error Limit	0.1℃ / 0.2℃
  Burette Drive	Burette Resolution (for 10ml Burette)	0.5ul (1/20,000 of the burette volume)
  	Error Limit	0.2% of the butette volume
  	Resolver Resolution	0.0625% of butette volume
  	Filling time and discharge time	20s at 100% filling rate
  Titration Dimension	w × d × h	210×246×250mm
  	Weight	4.3kg
  Terminal	Control	Touch Control
  	Screen	WVGA 7" color TFT
  	Resolution	800×480 pixel




  InMotion AutoSampler

  • ● Mettler-Toledo 적정기 모두 InMotion AutoSampler를 통해 한번에 여러 개의 샘플을 적정할 수 있음
  • InMotion Oven AutoSampler

  Cat. No	Model	Description	Capacity
  T25-162-251	30407503	KF Oven Autosampler	5ml
  T25-162-255	30407502		10ml
  T25-162-259	30407501		20ml

  • ● 오븐 추출 기능으로 수분을 측정하도록 설계됨. (40~280℃)
  • ● 30407503 : 26×5 ml 분석 가능
    ● 30407502: 24×10 ml 분석가능
    ● 30407501: 20×20 ml 분석가능
  • • InMotion AutoSampler

    Cat. No	Model	Description
    T25-162-570	30094120	InMotion Autosampler Flex (100ml 랙포함)
    T25-162-578	30094122	InMotion Autosampler Pro (100ml 랙포함)
    T25-162-582	30094123	InMotion Autosampler Max (100ml 랙포함)

  • ● 30094120 : 50×25 ml, 27×80 ml, 18×100 ml, 15×180 ml, 11×250 ml
  • ● 30094122 : 182×25 ml, 69×80 ml, 34×100 ml, 23×180 ml
  • ● 30094123 : 303×25 ml, 113×80 ml, 55×100 ml, 43×180 ml, 24×250 ml

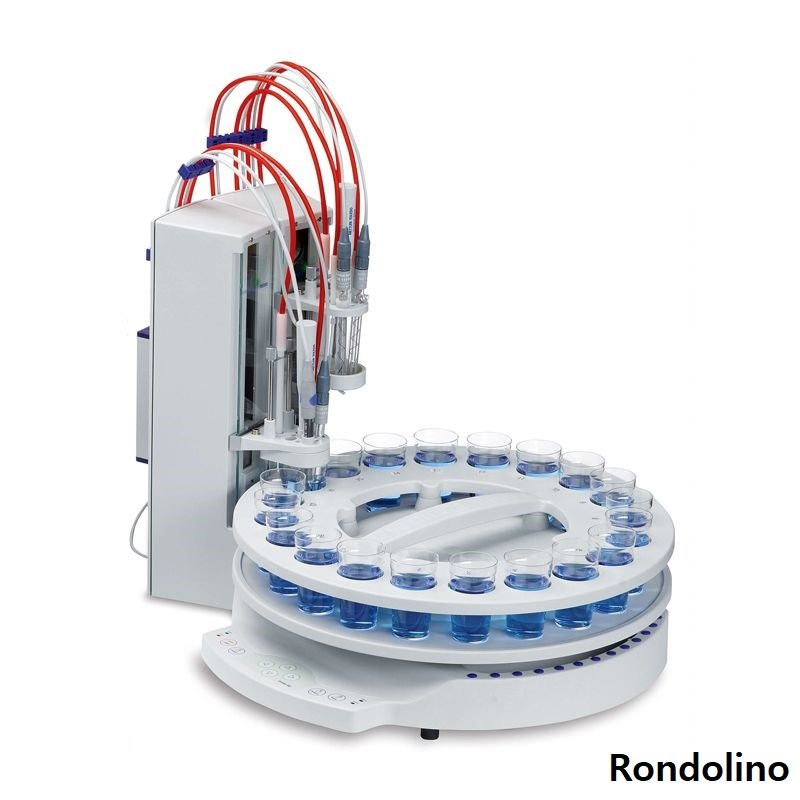

  • • Rondolino

    Cat. No	Model	Description
    T25-162-357	51108500	Sample Changer Rondolino

  • ● 회전형 적정 스탠드 : 9 samples + 1 conditioning beaker
